Brand guidelines

Numbers like 2.4 or A.3 are permanent. Page numbers move when the book grows; the address of a rule never does. "Follow 2.4" in a WhatsApp message to a printer is enough for them to find the exact rule, and enough for us to check the work against it.

One rule per spread. The rule, the reason for it, and the do and do not sit together on one page. Nothing is continued overleaf, so nothing is buried.

Three ways in: the contents on the next page, the find-it-fast index after it, and the A to Z at the back for anyone who does not know our vocabulary yet.

When each one is settled the note is removed and the rule stands as written. Until then, a reader can tell the difference between a locked rule and a working assumption.

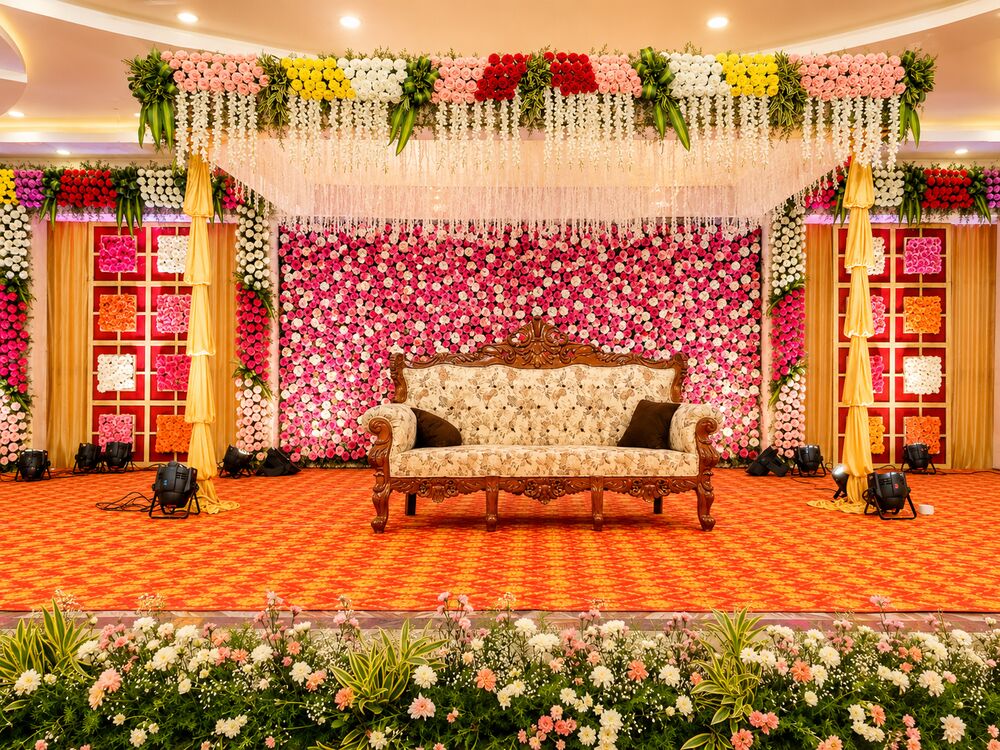

Mohan A started by sketching. Before a single flower was ordered or a stage built, he would sit with a family, listen to what they wanted their day to feel like, and draw it by hand, on paper, in front of them. That sketch became the promise, and the promise got kept.

Eight years later the same habit has carried NEWGEN through 1,500+ events and into three cities. The scale has changed. The sketch has not.

The name means what it says: next generation. It is built to carry NEWGEN through the next celebration, the next city and the next decade, and the descriptor "Event Studio" is designed to be removable when the hospitality chapter arrives.

Consistency is what makes them recognisable over time. A promise that is worded three different ways on three touchpoints is three promises, and none of them is remembered.

The tagline is set in Cormorant italic, with the calligraphic W. It sits beneath the descriptor, separated by the thin divider rule with its diamond centre point.

Adjectives are cheap. Every decorator in Chennai calls itself premium. What separates NEWGEN is that each trait has a habit behind it, and the habit can be shown.

These three are written once, here, and reused verbatim in the business profile, the website and every pitch. Do not invent a fourth for a particular document.

An earlier deck carried invented figures annotated as dummy data. Anyone could have lifted them in good faith. This table exists so that nobody has to guess which numbers are real.

Two claims are never merged. The nine years belongs to Sri Venkatesh Mahal. Illam is claimed on exclusivity and prestige, never on duration. "Eight years as Illam's partner" is wrong and must never be written.

The full mark is our signature: a temple pillar and flame finial woven into the N, where stability meets aspiration. Built to hold its presence with equal clarity across print, signage and digital touchpoints.

Chosen from 28 concepts with 80 percent public acceptance and the joint highest internal design score. It is designed to be the final mark, for twenty years, not two.

The N curve is the swoosh, the aspiration gesture. The N line and temple pillar give stability and South Indian heritage. The flame and deepam stand for vision, celebration and light, universal rather than festival-specific.

Together: heritage, vision, light in motion.

A unit taken from the mark itself scales with it. Ten millimetres is meaningless on a bus, and X is not.

a The crown. Its height is X. b The foot of the N curve, the lowest point of the mark. c The gap between swoosh and pillar, a deliberate figure-ground device, covered in 2.8.

The mark is quiet by design. It needs air to read as a signature rather than a badge. The zone is a minimum. On a letterhead or a signboard, give it more.

For the full lockup the same X applies, measured from the outermost point of the wordmark and the descriptor.

The size stress test settled this. At 16 pixels fine detail begins to soften, the flame and the inner negative space first, but the mark stays recognisable. So the same artwork serves favicon, display picture, app icon and embroidery.

Vertical lockup is the default: mark above NEWGEN above EVENT STUDIO. Vertical with tagline adds the divider rule and the tagline, for covers, signboards and the WhatsApp cover. Mark alone for square formats, watermarks and anything under the minimum. Wordmark alone only where the mark already appears elsewhere on the same piece.

The last two are container forms, and they exist for one reason: the logo sometimes needs to bring its own surface. The rounded card holds the full lockup. The solid mark is a disc with the mark cut out of it, and it is the form that survives being small or being stitched. Both are covered in 2.11.

A horizontal lockup is not part of the system. If a horizontal space forces one, raise it under 9.1 rather than improvising.

The ruby gem in STUDI● stays ruby in every version except one: on a ruby or red background, and on single-colour reproduction, the gem becomes the mark colour.

a The gap creates depth: the swoosh reads as passing in front of the pillar. Close it and the mark flattens into a letter. b The foot of the N curve is the second place fine processes fail, where a thin edge meets the base.

Each process below has a floor. Under that floor, use a different process or a larger mark. Never ask a vendor to "make it work".

A designer at a printer, a jersey supplier or a broadcast studio will offer to "recreate it in vector for you". The answer is no. The files already are vector. A redraw always drifts: the gap widens or closes, the flame fattens, the wordmark gets retyped in a lookalike face.

Send the files in 9.1. If a vendor cannot use them, that is a vendor problem, not an artwork problem.

Each example is specific to this mark, because generic rules get ignored. The gap, the deepam, the black, the partner colour: these are the failures a real vendor will produce unless told otherwise.

The rounded card is the full lockup on a rounded rectangle. Use it where the logo needs a clean field of its own: a badge over a photograph, a sticker or label, a stamp on a document, a tile in a partner line-up. Corner radius is 12.8 percent of the short side and holds at every size. It is not the primary logo: on a letterhead, a signboard or a vehicle the plain lockup wins, because the card competes with the layout.

The solid mark is a filled disc with the Crown Pillar cut out of it. It carries no fine detail and no gap that a stitch or a die can close, which makes it the only form to send for embroidery, a lapel pin, a jersey patch, an app icon or a favicon. It holds at 10 mm in print and 32 px on screen, well below the lockup floor of 20 mm.

The solid mark comes in two builds and choosing wrong is the one way it fails. Knockout leaves the letter open, so the background shows through: use it only when you know what is behind. Two colour fills the letter, so it reads the same anywhere: send this one to anybody outside the studio.

Anything outside this set requires a conscious decision and a reason. It is never a default.

Print-first, purpose-driven. Each colour is expanded into tints only where it serves hierarchy, depth or subtlety in real applications, see 3.2.

Swatch names are part of the system: NG-Teal-100, NG-Teal-60, NG-Teal-20, NG-Gold-100, NG-Gold-Dark, NG-Cream (use stock), NG-Ochre-100, NG-Ruby-100.

Teal for Illustrator CMYK production may round to #024C51. That is CMYK rounding, not a design decision. Screen work always uses #024C4F.

The proportion is the identity. Swap the weights and the piece stops looking like NEWGEN even with every colour correct.

The ruby rule is the one most often broken. One gem per touchpoint. If a layout wants a second red element, the first one loses.

No black as a dominant colour is Mohan's explicit call, not a stylistic preference. Treat it as a hard constraint in every review. Teal 100 does the work black would do.

Measured, not judged by eye. The two brand pairs that fail for body text are the ones people reach for first: gold on cream and cream on gold. They are beautiful and they are illegible at 10 point. Use them for the mark, rules and large display, never for a paragraph or a phone number.

These notes travel with every print order. A printer who has read them has no reason to ask.

The contrast between the high-contrast serif and the pure geometric sans is the type system. It is intentional and must be preserved. Do not "fix" it by matching weights or by choosing a softer sans.

The display serif is never asked to carry small or dense text. Below 14 point, Futura takes over.

The scale is fixed so that a quotation, a letter and a signboard read as one voice at three sizes. When a layout seems to need a seventh role, it needs less text.

Cormorant (the base family) stands in for Cormorant Garamond and carries the tagline. Jost Light is the nearest free match to Futura PT. Inter is the interface face for web and app screens only.

Decorative flower and vine fonts were explicitly rejected: they make NEWGEN look like every other event company. Condensed and ultra-light weights fail on signage and vehicles at distance.

Without this rule, every Tamil word on the website and in print falls back to a system font, and the piece looks broken in the one place it needs to feel fluent.

The pattern: English in the heading, Tamil in the first sentence and as a tag. It reads as the way people in Chennai actually speak, not as keyword stuffing.

These are typographic rules as much as voice rules, because they change how a page looks. A title in capitals shouts. An em dash breaks the line like a fence. An exclamation mark does the confidence's job for it, and it shows.

A kolam is drawn as one continuous line: the practice holds that an unbroken line keeps out what should stay out. Our tile keeps that rule. It is unicursal, and any version of it that breaks the line is not the pattern.

The tile and the single motif are two different assets and are not interchangeable. The tile is the ground. The motif, shown in 5.3, is the ornament that goes on top of it.

The lines are always a brand colour on a brand ground. Never a tint of the ground colour on itself, never grey, never black.

Three proven scales. On a business card back it reads as delicate texture. On a letterhead band the geometry is visible. On an envelope lining the full pattern is legible and elegant.

The single motif, one tile standing alone, is the pattern's other voice: a corner mark on the quotation, a divider on a cover, an emboss on a folder.

An unclosed kolam reads as "not yet complete". That is exactly the right picture for an empty category, a failed image, a 404 or an offline page, and it is completely ownable. Five compositions cover launch; the full library comes later.

Icons: one family, one stroke weight, one size scale. Gold or teal only, never multicolour. The line icon set on the right is the current family and must reconcile with the minimal teal icons on the business card back.

The portfolio is evidence. A bride books from it, and on the day the room has to match the picture. Three approved moodboards set the register: Temple Heritage through a modern lens, Boutique Hotel Premium, and Sketch to Stage.

Photographs lead and copy supports. This is the one rule that makes the website and Instagram feel like NEWGEN rather than like a brochure.

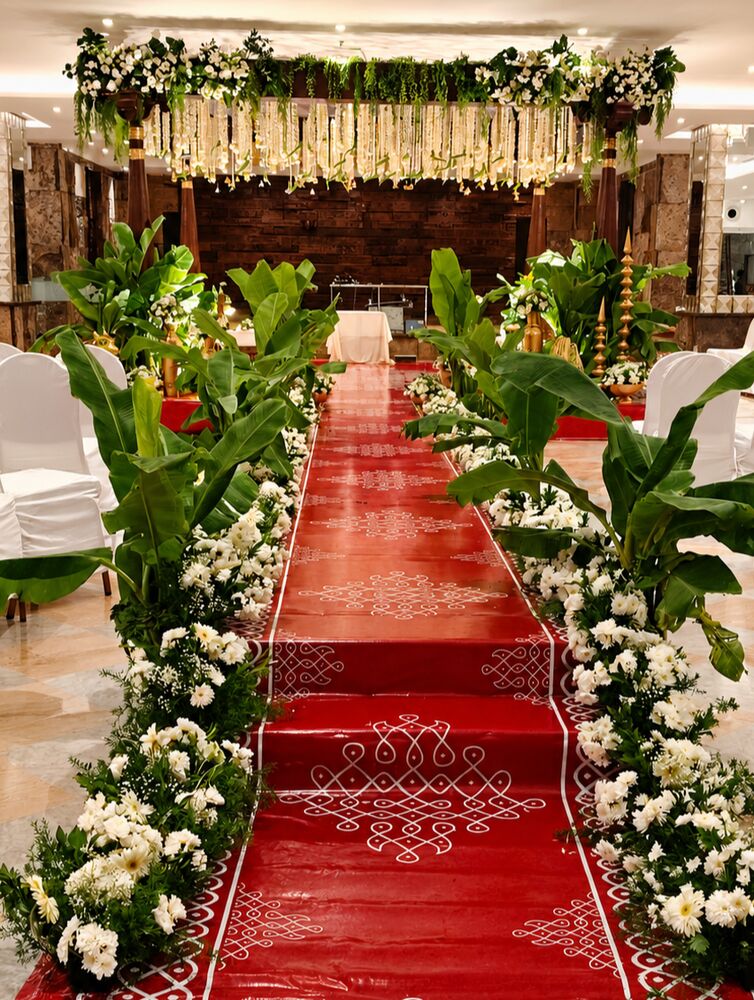

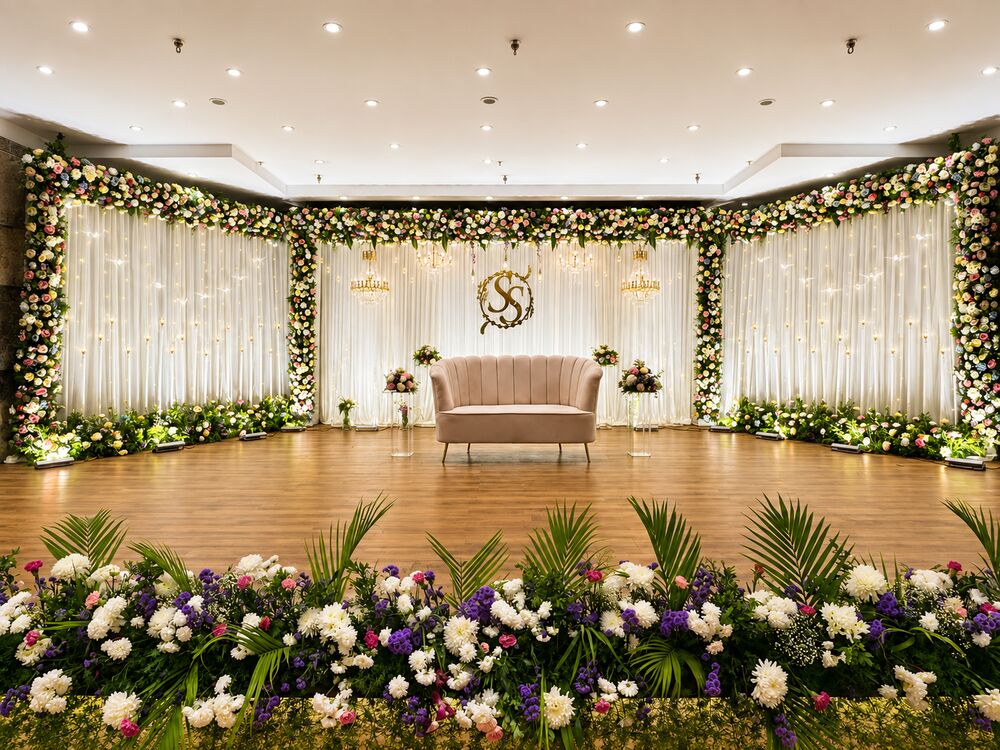

The order follows the guest journey Mohan sells with: outside in, entrance to stage. A page built from these frames walks a visitor through the venue the way he walks a client.

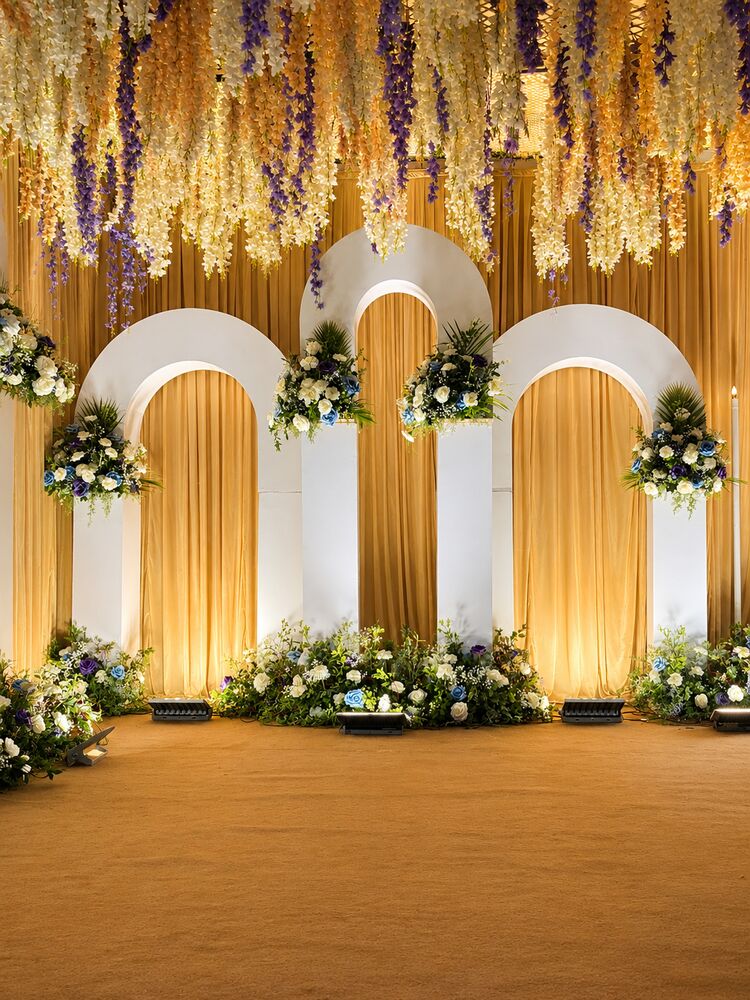

The line is simple: a correction makes the picture truer to the room. A regeneration makes it a picture of a room that did not exist, and that becomes Mohan's problem on the wedding day.

NEWGEN records its own colour grade as a one-click action, values derived from the NEWGEN palette. Warm toward gold, shadows toward teal, 2 to 3 percent film grain. Never reuse another studio's grade: two Chennai decorators with one grade read as one gallery.

Guests did not agree to be marketing. Shoot the hall, the setup and the atmosphere; turn faces away, shoot from behind, or crop. The bride and groom appear only with their consent, and then with pleasure.

If a sentence sounds like it is trying to impress, it is off-brand. If it sounds like a calm, capable person quietly showing you proof, it is on-brand.

If NEWGEN were a person: well-dressed, soft-spoken, carries a sketchbook everywhere, listens more than he talks, draws what you describe, and builds it exactly as promised. Bilingual naturally, moving between English and Tamil the way people actually do in Chennai. Write like that person is talking, never like a marketing department.

The good lines are real NEWGEN lines. Reuse them.

Use a comma, a colon, parentheses or a hyphen with spaces where an em dash would go. Avoid stacked adjectives: pick the one true word, or describe the detail instead.

Three Tier 1 audiences share NEWGEN: HNI wedding families, mandapam owners, and hotel and resort GMs. Each gets a register, and the website has to hold all three on one homepage without feeling split.

Captions are short. The visual is the pitch; the caption is the caption. Avoid the industry openers: "Because every love story deserves..." and "Swipe to see the magic" are banned.

A photographic mockup shows what something might look like. A specification shows what to make. This book carries both, and only the specification is binding.

Conventions: a, b, c callouts key to the caption column. Dimensions are finished size, bleed excluded unless stated. Cap height means the height of the capital N in NEWGEN.

Financial and operational documents carry almost no free-standing copy. The brand shows through the system, the layout, the colour and the type, never through language. Write only what is functionally required.

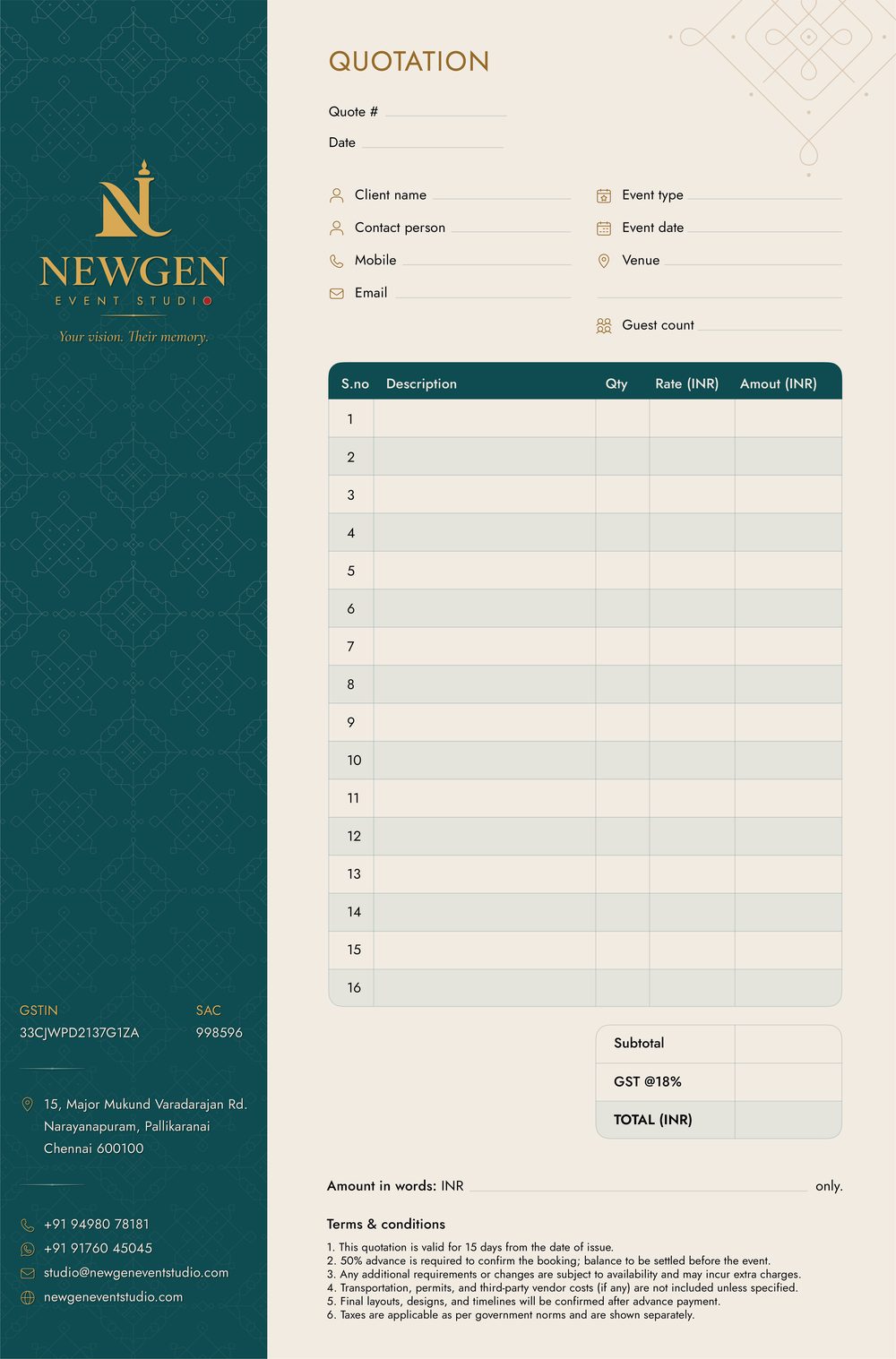

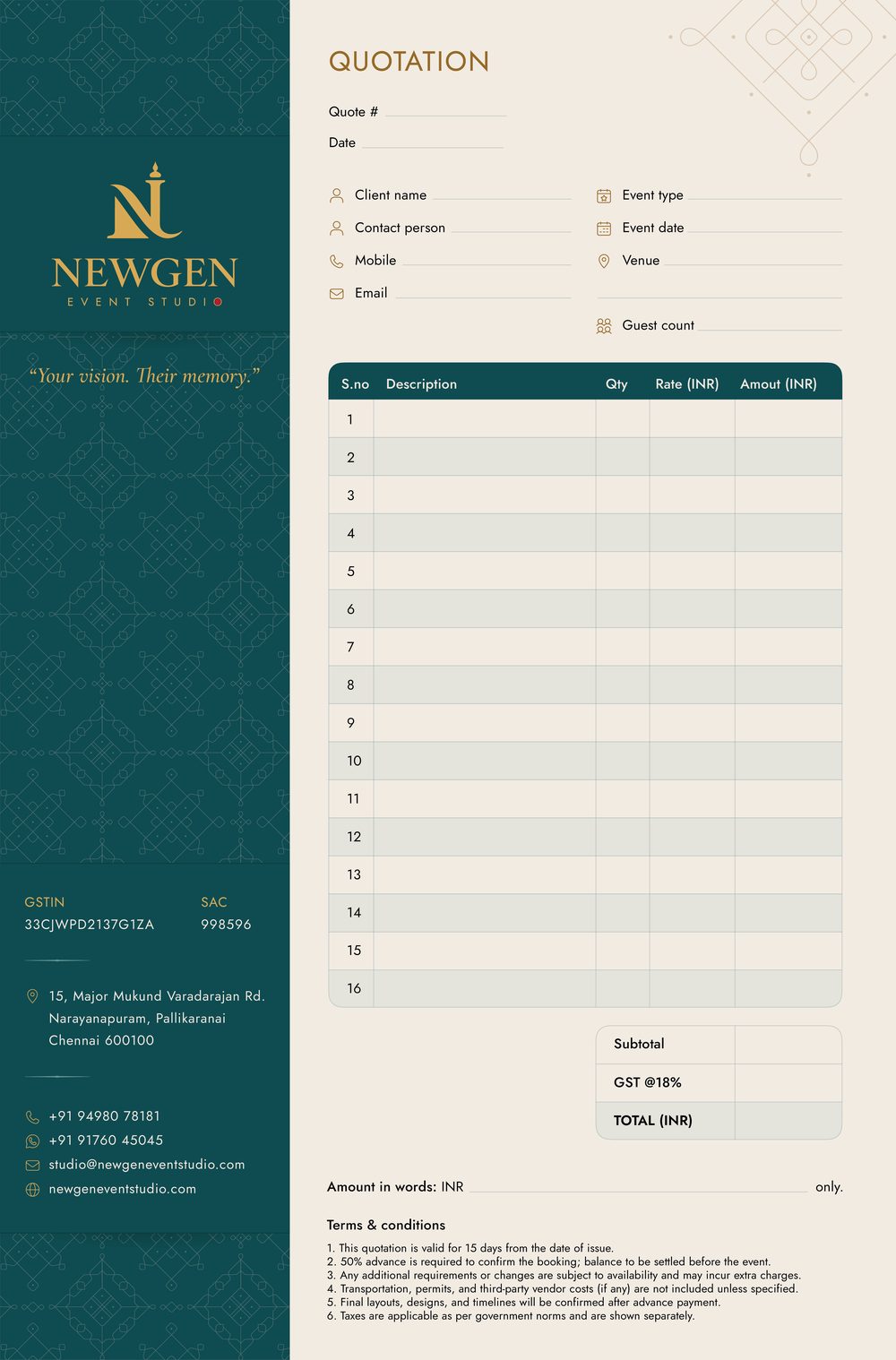

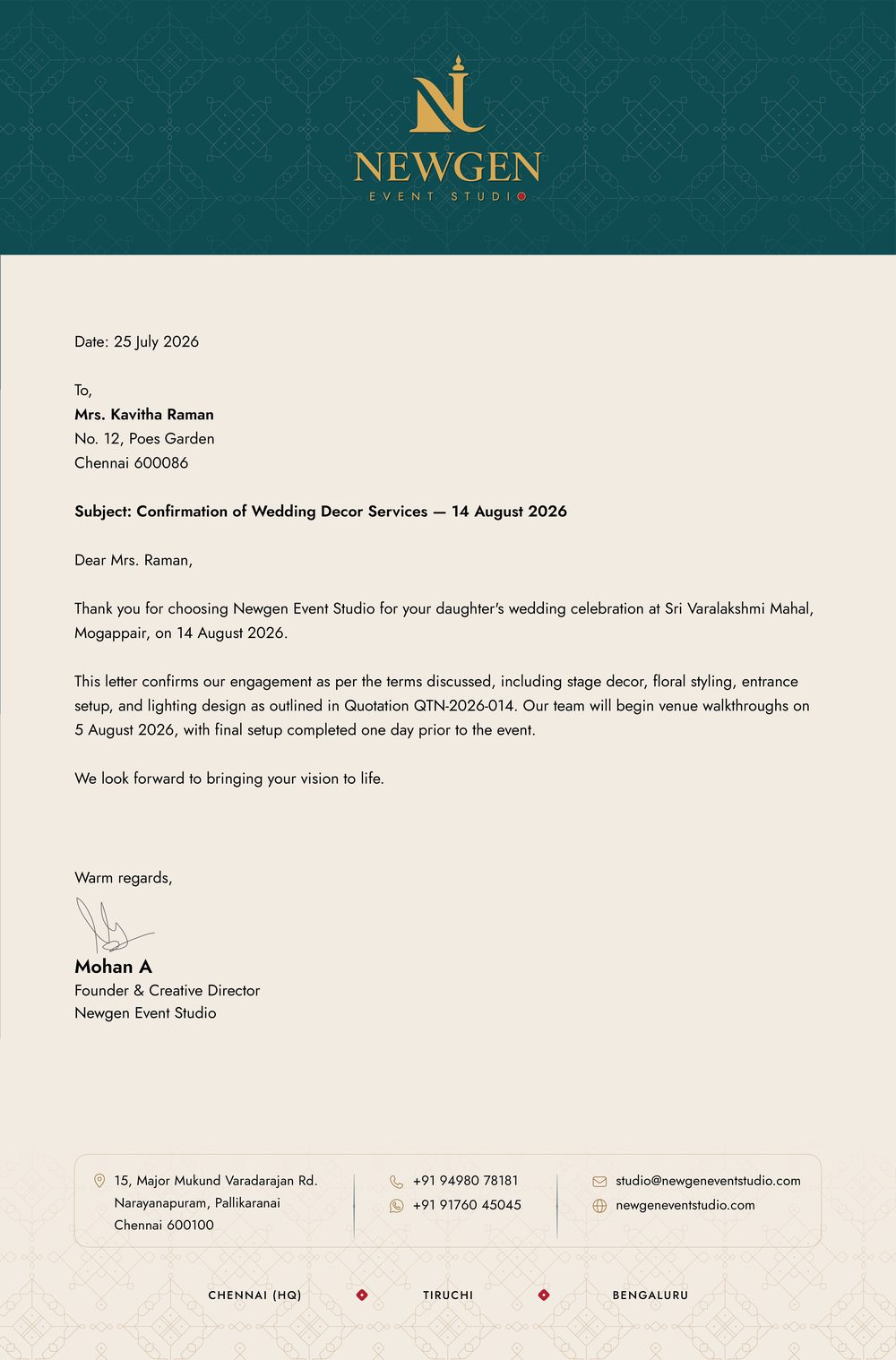

Quotation and invoice mirror each other exactly, so a client recognises a NEWGEN document before reading it. Address, phones and email match the business profile character for character.

Role tiles: studio, hello (customer facing), crew, shoot, founder and MD ma'am each carry the mark with a badge, on teal, gold or ruby, so a contact can tell which NEWGEN number they are talking to before reading the name.

Square posts and status images use the teal tile with the full lockup, or a photograph with the cream mark as a watermark at 8 to 10 percent of the image width, corner placed.

a Full lockup, gold vinyl or gold paint, cap height 90 mm on a 6 × 4 ft board. b Tagline in Cormorant italic, gold, optional. c Edge margin never less than X, and never less than 60 mm.

Material: ACP with cut vinyl for the standard board; acrylic with backlit gold for the blade sign. Pattern at 20 percent tint of gold behind, or none. High contrast for distance: teal and gold read at 30 metres, cream type at 15.

a Full lockup, gold cut vinyl on teal, cap height 150 mm on the cargo side of the Mahindra Bolero pick-up and Dost XL. b WhatsApp number in Futura, cream, 60 mm cap height. c Cab stays unbranded except the mark alone on the door, 120 mm high.

Rear door, where present: mark alone, 300 mm, centred. Production vector for the signage vendor is supplied from the master file, never from this drawing.

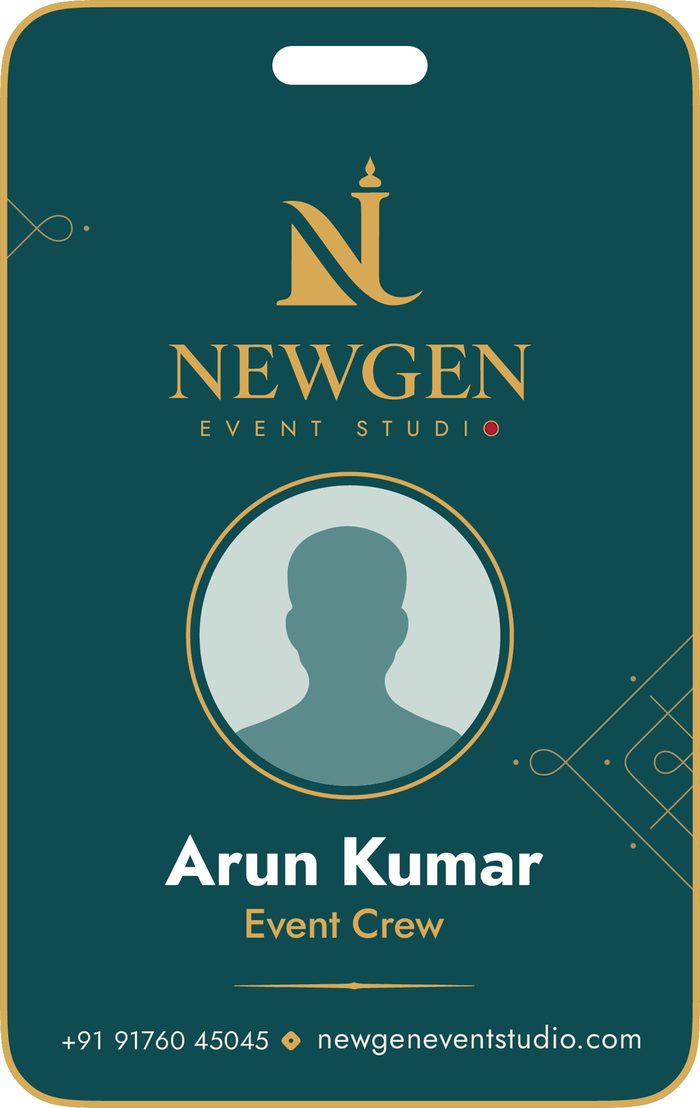

ID card CR80, teal, gold lockup, photograph in a gold ring, name in cream, role in gold. Lanyard: alternating mark and kolam motif in gold on teal, 20 mm. Uniform: mark alone on the left chest, single colour, wordmark on the back where the role allows.

The thank-you card says one sincere thing in Mohan's own register, nothing more. It is closer to what he would say aloud after an event than to a printed insert.

Co-branding is where identities dissolve. The rule is mechanical so that it does not depend on taste: measure the partner mark, cap the height, keep X between the two, divide with a line.

NEWGEN leads on NEWGEN material. The partner leads on theirs. On neutral ground, alphabetical. See the annexe for the ISCL case in full.

This is the largest surface the mark has ever carried, in front of an audience that has never heard of NEWGEN and sees it with no context. So the descriptor stays visible: the symbol never travels alone here.

Clause 11 of the MoU gives ISCL the right to request files in its formats, on its timeline, and to reject or modify artwork. This annexe, and the file set in A.6, are what prevent a redraw.

The company name in every supplied file is NEWGEN Event Studio, and the email is studio@newgeneventstudio.com, regardless of how the MoU text reads.

a NEWGEN full lockup, descriptor visible. b Chola Kings mark, supplied by ISCL, never redrawn by us either. c Designation line in Futura, sentence case, verbatim from clause 9.

The lockup reads as sponsorship, not as NEWGEN being a travel company. That is the whole point of keeping "Event Studio" in the frame.

On ISCL's purple, magenta and blue system: gold or cream mark only. Never teal on their colours. Chola Kings team colours, when supplied, are tested against 3.4 before any artwork is released.

a Full lockup, gold, 0.8 of board height, left third. b NEWGEN in Cormorant Bold, gold, cap height 0.45 of board height, with EVENT STUDIO · CHENNAI beneath in cream Futura. c Edge margin 100 mm minimum, because boards are trimmed and overlapped on site.

This is the distance and broadcast variant of the mark: gold on teal, gem removed, no fine detail. It exists only for boards and broadcast and is never used in print.

Embroidery on a curved shoulder is exactly the process that fills the gap with thread and rounds off the flame. The floor in 2.8 applies with no exceptions, and a stitched sample is approved before the run.

Colour: gold thread on a dark jersey, teal thread on a light one, decided by 2.7 once the Chola Kings colours are known.

Vinyl on a curved panel: the gap floor is 2 mm, weeded by hand, never bridged. The patch is teal because the mark must not be placed directly on the team livery.

Broadcast files are supplied as the distance variant, 16:9 and 1:1, with a 10 percent safe margin baked in. Ten seconds is not long. One frame with the mark clearly legible beats ten frames of animation.

The IOC runs its brand this way, and for the same reason: whoever holds the master can change the mark. Whoever holds an EPS can only place it.

A rule that bends silently is no longer a rule. The route is short on purpose: one message, one decision, one line added here.

Maximum two revision cycles per deliverable round; changes after that are scoped separately.

This is the whole book at its smallest. If a person reads only this page, the brand survives the day.

Written for ISCL's design team in Bengaluru, for a printer who has never done a wedding, and for whoever joins NEWGEN next.

If a word you looked for is missing, that is a fault in this book, not in you. Send it to eswar@eswarcreatives.in and it goes into the next version.
